chips commercial lighting led stadium high bay light 120w
Overview

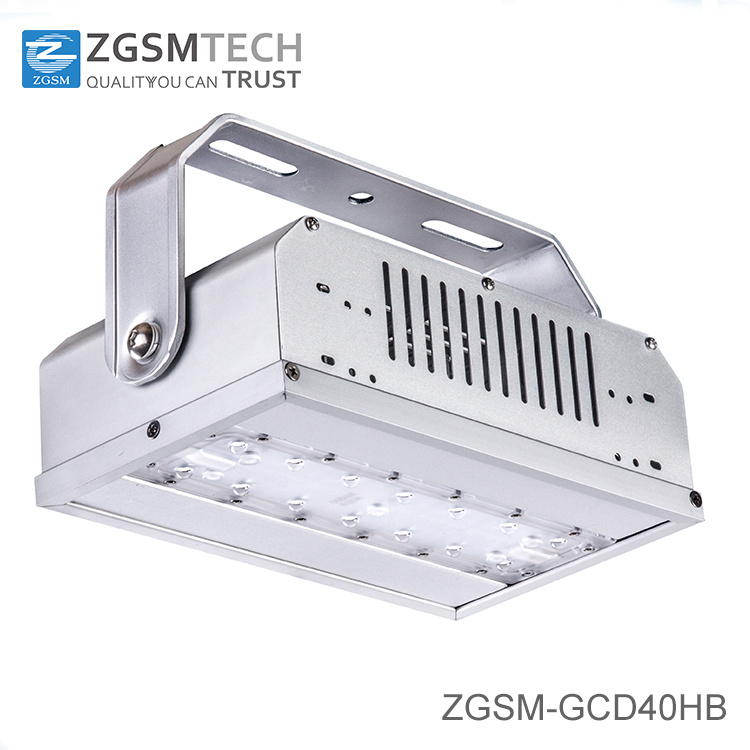

Revolucionary built-in driver design with extremely simple and clean appearance.The ZGSM® HB-Series LED high bay lights are using highly luminous-efficient LUMILEDS® LUXEON TX luminous source and highly reliable HLG Series Mean Well® driver.Provide 7 years warranty on luminaire.
Product Advantage
1. LUXEON® TX luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 100,000 hours operation life.
4. Available for 60°, 90° and 110° beam angle.
5. IK10&IP66.
6. Adjustable mounting bracket.
7. UL, DLC, RoHS, CE, GS, CB, SAA certificated.
8. Patent product with 5 patent certificates.
9. 7 years Warranty
Specification
Overview
Revolucionary built-in driver design with extremely simple and clean appearance.The ZGSM® HB-Series LED high bay lights are using highly luminous-efficient LUMILEDS® LUXEON TX luminous source and highly reliable HLG Series Mean Well® driver.Provide 7 years warranty on luminaire.
Product Advantage
1. LUXEON® TX luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 100,000 hours operation life.
4. Available for 60°, 90° and 110° beam angle.
5. IK10&IP66.
6. Adjustable mounting bracket.
7. UL, DLC, RoHS, CE, GS, CB, SAA certificated.
8. Patent product with 5 patent certificates.
9. 7 years Warranty
Specification
| Model | ZGSM-GCD120HB |
| LED Brand | LUXEON® T |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 120W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 13200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | '-40ºC~+70ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, GS, CB, UL, CUL, DLC, SAA, |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 312 x270 x1263 mm |
| Fixture Weight | 4.6 kg /10.1 lbs |
| Packing Dimension | 430 x370 x200 mm |
| Packing Weight | 5.4 kg /11.9 lbs |
