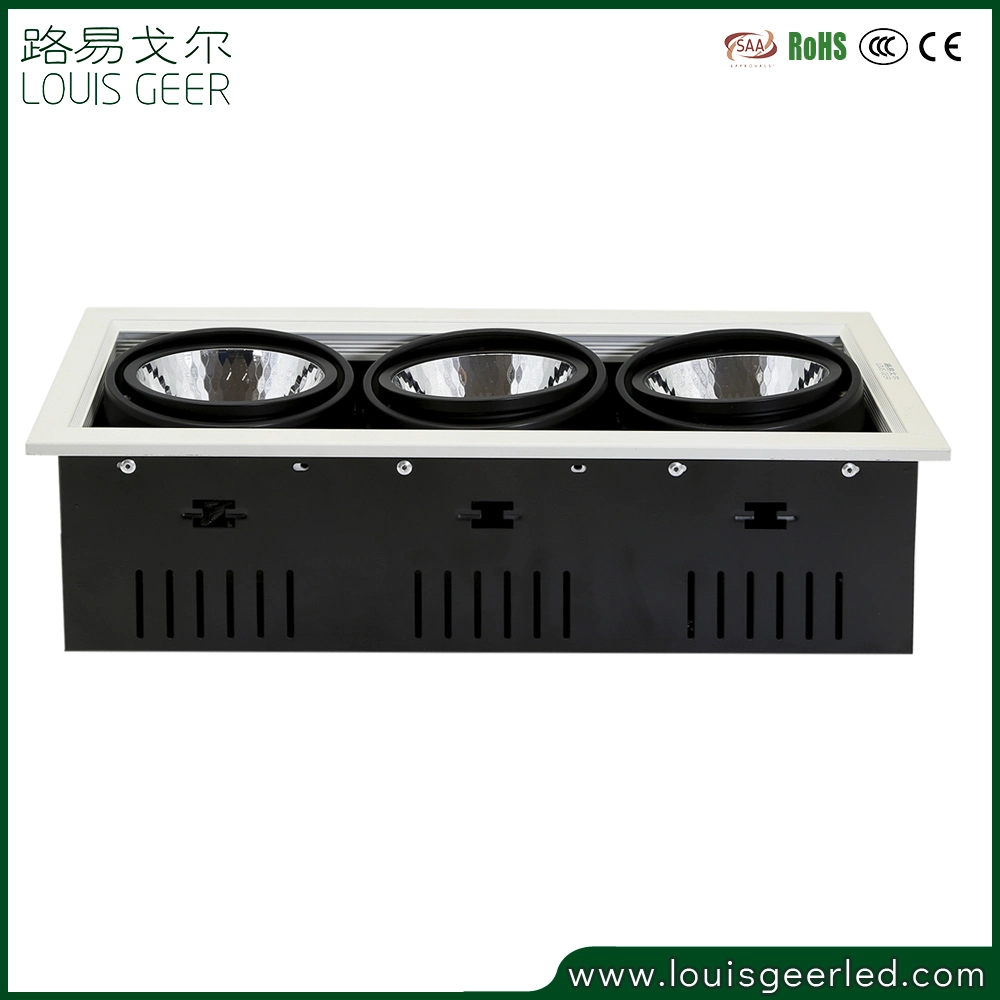

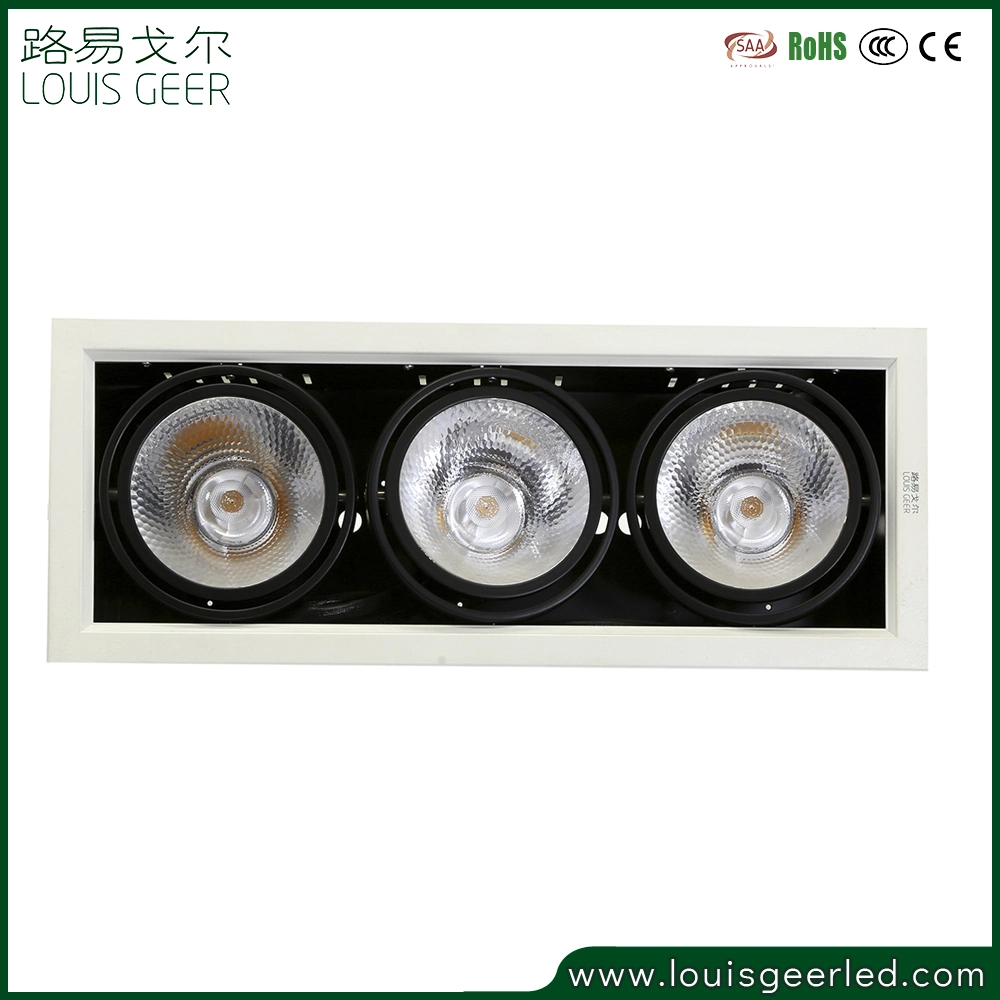

Architecturally designed LED downlight series with classical slotter design, ideally suited for high-quality residential projects & commercial fit-outs. The slotter design incorporates individually adjustable LED apertures which provide optimum use flexibility.
Main features:
1.This family offers broad range of choice you can find small,medium and large size spotlights with adjustable heads.
2.With or without frame.power from 5W up to 60W each fixture,different beam options from narrow spot to flood,they can suit almost all your light demand.
3.Application: Hotel, Bars, Shopping mall, Fashion showcase, Office, Conference room, etc.
4.Hight efficient optics with perfect glare control
5.Available in 1/2/3 head ,5W/6W per head.
Specifications:
| Item No. | NF-SD-037E3-36M | NF-SD-037E3-36M |
| Color | White | Black |
| Rated Power | 3*12W | 3*12W |
| Input Voltage | AC 200-240V | AC 200-240V |
| Material | Aluminum | Aluminum |
| CCT | 2700-6500k | 2700-6500k |
| IP Rating | IP20 | IP20 |
| Luminous Efficiency(lm/w) | 90lm/w | 90lm/w |
| Beam Angle | 12°/24° | 12°/24° |
| Chips | COB | COB |
| Life Span | 50000h | 50000h |
| Warranty | 3 or 5 years | 3 or 5 years |
Detailed photometric report and IES files available by request
Typical Applications
Typical applications include residential projects, retail showrooms, shopping centres, galleries, offices, restaurants, cafes & hospitality projects, food preparation areas.
LOUIS GEER is a designer, manufacturer of LED lighting products with superior quality. We only make top quality products integrating the most advanced LED technology. Our objective is to become a total solution provider in the LED retail and shop lighting sector.
Main markets:Fashion shops Shopping malls Supermarkets Hotels, offices and public spaces
1. We have unique professional R&D, production,quality control teams.
2. Plentiful experience in LED market to provide OEM/ODM;
3. With imported advanced machine for LED
4. Encapsulation, SMD and reflow soldering.
5. Integrated QC system is implemented in every aspect of production
Our Services
a. Original design and unique products based on our own R& D team, and factory.
b. Able to provide OEM/ODM solutions tailored customer needs; can customize retail box packing, etc.
b. For your inquiry, we're to reply in detail within 24hours.
c. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.
Warranty: 5 year warranty, to best support our customers.
a. For quality issue from our side, we are responsible for repairing.
b. For manual damage or incorrect usage from customer side, LOUIS GEER is to repair while charge caused is at your side, but only a cost price
3D Modelling & Lighting Design
Louis Geer can provide detailed 3D modelling and lighting design services for your project, including wiring schematics and lighting control system design. Contact us for more information.
Customisation Options
Trim colour can be refinished
Metallic trim finishes available by request
