7W 3000K color temperature 36 degree beam angle luminous COB LED track light LED magnetic spot light

7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED track light LED Magnetic SpotlightProduct Features:1. Using imported COB LED, high light efficiency, long life, good color consistency;2. Two-way angle adjustment, vertical 90 ° adjustable, horizontal 350 ° adjustable3.10 ° anti-glare cutoff angle, can

Featured Products

7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED track light LED Magnetic Spotlight
7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight
7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight

7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight


7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight

7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight

Product Features:
1. Using imported COB LED, high light efficiency, long life, good color consistency;
2. Two-way angle adjustment, vertical 90 ° adjustable, horizontal 350 ° adjustable
3.10 ° anti-glare cutoff angle, can play a good anti-glare effect;
4. Lenses with different angles can be provided, and LEDs with different color temperatures can be customized;
5. Aluminum radiator, surface powder spraying, which combines heat conduction, air convection and heat radiation to effectively extend LED life;
6. The lamp is small and exquisite, adopts the magnetic suction installation method, and comes with a buckle, which is simple, convenient and safe to install;
7. Different intelligent dimming methods can be selected: 0-10V dimming and DALIN dimming.
Product Spec.:

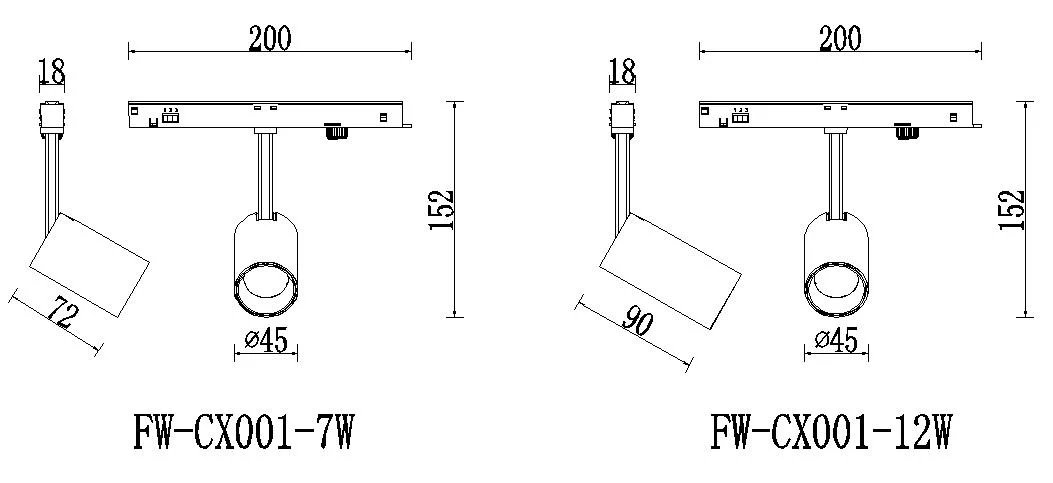

Item NO.Size (MM)

Power (W)

QTY/CTN (PCS)

Lumen (LM)

CRI

CCT

Operating Voltage

Beam Angle

Frequency Grade

FW-CX001-7W

φ45*72

7W

48

630

90

3000K
4000K
6000K

24V-48V


15°
24°
36°

I

FW-CX001-12W

φ45*90

12W

48

1080

90

3000K
4000K
6000K

24V-48V

15°
24°
36°

I

Structure and Materials:
LED: Luminus COB LED
Driver: Our own power supply
Lamp body material: Aluminum alloy
Lamp Cover: PMMA
Ambient temperature: -40ºC-50ºC
Operating temperature:≤50°
Work efficiency: 5-95%
Life: 50000 hours
Warranty: 3 Years
Packing Information:
Item NO.Size(mm)Carton Size(mm)N.W.(KG)G.W.(KG)CBM(m³)
FW-CX001-7Wφ45*72735*335*4809.6 0.12
FW-CX001-12Wφ45*90735*335*48010.08 0.12

Warn:
  1. Please cut off the power before installation to reduce the risk, so as not to damage the lamps;
  2.  Please use the working voltage within the specified range;
  3. Do not cover the lamps with flammable materials;
  4. This lamp is only suitable for indoor use;
  5. Do not disassemble lamps;
  6. Only engineers who hold relevant qualification certificates can install.
3 Modes Track Rails + 5 Style Magnetic Light

7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight

7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight
5 Style Magnetic Light List
No.Product NameItem No.Size (mm)CCTWattBeam AngleColorInstallationRemark
1LED Magnetic SpotlightFW-CX001-7Wφ45*723000K/4000K/6000K7W15°/24°/36°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX001-12Wφ45*903000K/4000K/6000K12W15°/24°/36°Matt Black/
Frosted White
Magneticwith clip lock
2LED Magnetic FloodlightFW-CX002-8WL310*W20*H453000K/4000K/5700K8W180°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX002-12WL600*W20*H453000K/4000K/5700K12W180°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX002-18WL890*W20*H453000K/4000K/5700K18W180°Matt Black/
Frosted White
Magneticwith clip lock
3LED Maget Linear Grating LampFW-CX003-12WL306*W20*H453000K/4000K/5700K12W30°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX003-18WL456*W20*H453000K/4000K/5700K18W30°Matt Black/
Frosted White
Magneticwith clip lock
4Adjustable LED Maget Linear Grating LampFW-CX004-12WL306*W20*H903000K/4000K/5700K12W30°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX004-18WL456*W20*H903000K/4000K/5700K18W30°Matt Black/
Frosted White
Magneticwith clip lock
5LED Magnetic Pendant LampFW-CX005-7Wφ45*723000K/4000K/6000K7W15°/24°/36°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX005-12Wφ45*903000K/4000K/6000K12W15°/24°/36°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX005L-7Wφ45*3103000K/4000K/6000K7W15°/24°/36°Matt Black/
Frosted White
Magneticwith clip lock
FW-CX005L-12Wφ45*3103000K/4000K/6000K12W15°/24°/36°Matt Black/
Frosted White
Magneticwith clip lock

7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight
7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight
7W 3000K Colour Temperature 36 Degree Beam Angle Luminus COB LED Track Light LED Magnetic Spotlight

Farwise Technology Co.,Ltd with USD$1 million registered assets and 2,000 M² area, is located in Huaxin Industrial , Gaobu Town,Dongguan City.Which belongs to Pearl River Delta of China. As you know, the Pearl River Delta region is a world-renowned processing and manufacturing and exporting base. It is adjacent to guangzhou-shenzhen Expressway in the southwest, enjoying the convenient traffic conditions. 80KM away from Shenzhen Bao'an International Airport and Shenzhen port , one and a half hours from Shenzhen or Guangzhou airport by car.

Our company is specialized in OEM&ODM extrusion products including PC tubes/covers/lens and PVC copper Co-extrusion parts .Track system products including magnetic track light, 2wires 3wires4 wires track rail and the related connectors accessories parts.The showcase track rail with magnet or not. .
Farwise Technology Co.,Ltd. has passed international quality management system ISO9001:2015, due to its outstanding products and services. It has established the business relationship with both from domestic and overseas and has obtained consistently high praise from our customers since it was set up. We have cooperated with some big companies including Philip,Weida,CCT and so on.

Please send us your idea or your drawing or your samples.Our executive  engineers will come up perfect solution for you .We also have our professional sales team to make sure the whole communication smoothly and effectively.Our responsible QC team will promise the good quality to each customer .

We are looking forward to cooperating with different companies from all over the world and sincerely welcome you to visit our company or view our Web.
